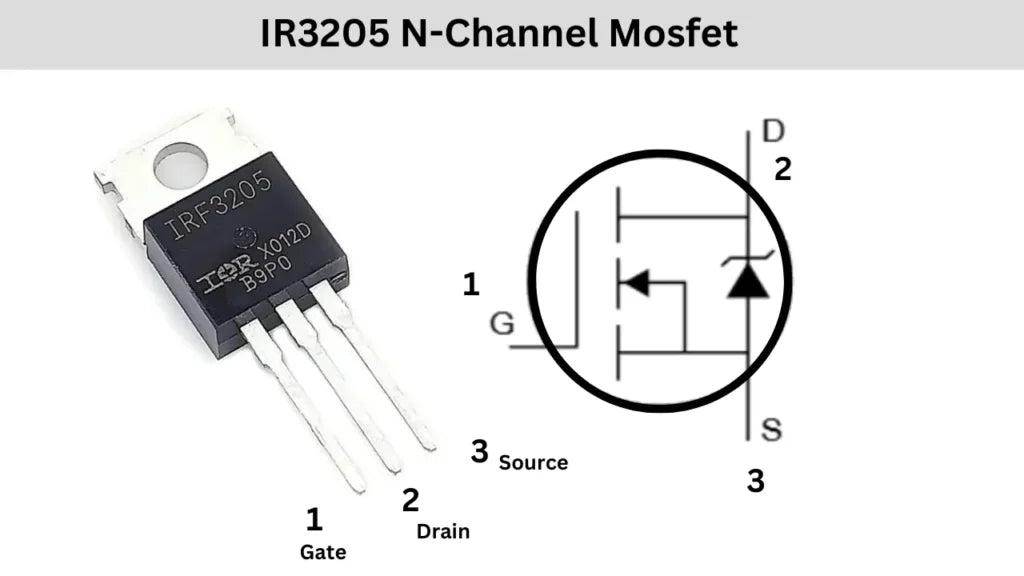

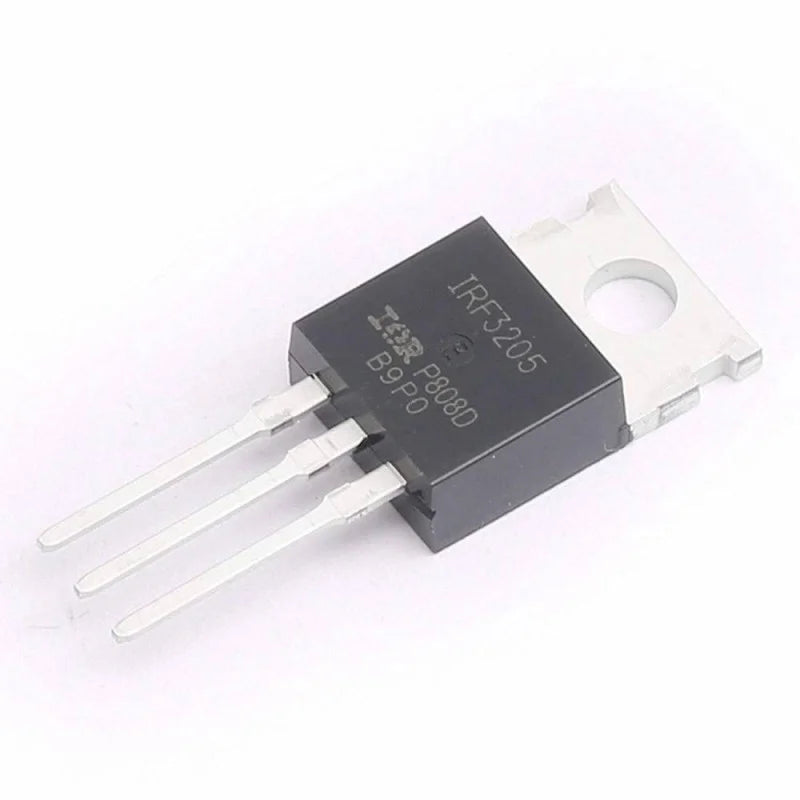

IRF3205 Power MOSFET (TO-220 Package) - 55V 110A High-Current N-Channel Switching Transistor

High-Efficiency Power Switching for Industrial Automation & Power Supplies

Take control of high-current applications with the industry-standard IRF3205 N-Channel Power MOSFET. Packaged in a robust TO-220 through-hole design, this power transistor utilizes advanced processing techniques to achieve an extremely low on-resistance ($R_{DS(on)}$ of just $8m\Omega$), minimizing power dissipation and maximizing efficiency.

Capable of handling breakdown voltages up to 55V and continuous drain currents up to 110A, the IRF3205 is specifically engineered for high-speed switching and heavy inductive loads. It features full avalanche rating and excellent thermal dissipation capabilities, making it the ultimate choice for demanding electronic designs.

Key Applications:

• SMPS & Inverters: High-efficiency Switch Mode Power Supplies and DC-to-AC power inverters.

• Motor Control: Speed control for high-torque DC motors and H-bridge configurations.

• Industrial Automation: Actuator drivers, high-load switching cards, and automated relay replacements.

• Battery Management Systems (BMS): Battery protection circuits and auto-switching backup modules.

Technical Specifications:

• Type: N-Channel MOSFET

• Package Type: TO-220 (Through-Hole)

• Drain-to-Source Voltage ($V_{DSS}$): 55V max

• Continuous Drain Current ($I_D$): 110A max (at 25°C)

• On-Resistance ($R_{DS(on)}$): $0.008\,\Omega$ ($8m\Omega$)

• Fast Switching Speed & Low Gate Charge
